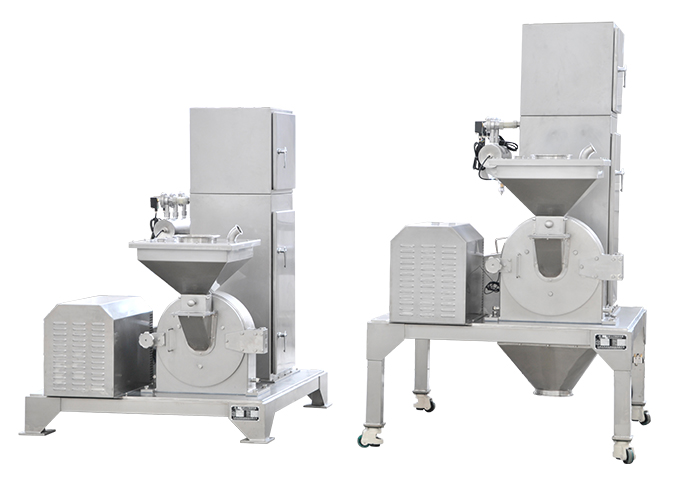

JB Series Auto Dust Type Crusher

 JB Series Auto Dust Type Crusher

 JB Series Auto Dust Type Crusher

Detailed description

Main Usage:
Applied as supporting equipment before fine crushing process in such trades as pharmaceutical, chemical and foodstuff etc. This machine is a new generation coarse crushing equipment combining crushing and dust collection as a whole.



Working Method:

This machine is of vertical crushing structure, and the material is fed into the crushing chamber through a hopper, crushed by simultaneous cutting of both fixed and movable knives and rotating impact of rotating knife, and enters into the catcher automatically under the effect of rotating centrifugal force, and the dust is filtered and recovered by dust collector through a bag. Designed according to GMP standard and wholly made of stainless steel, this machine has no flying dust during production, and can improve the utilization rate of material and reduce the cost of enterprise, thus reachine the intemational advanced level.

Technical parameter

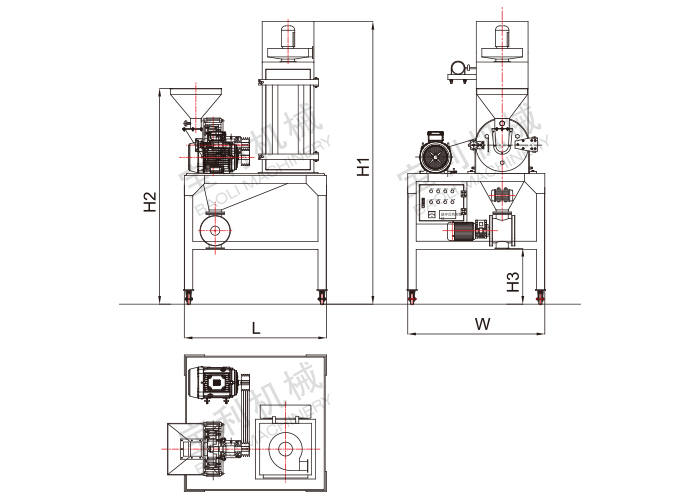

Model Main Structural Dimensions(mm) Capacity Input Particle Size Output Particle Size Machine weight Speed Total power
L W H1 H2 H3 Kg/H mm mesh Kg Rpm/min KW
JB-20 1200 1150 2570 2070 650 60-180 <6 12-120 300 4600 5.88
JB-30 1250 1200 2570 2190 650 100-400 <10 12-120 450 3800 9.38
JB-40 1400 1350 2890 2230 650 200-800 <12 12-120 700 3400 12.88
JB-50 1600 1500 3110 2600 650 280-1000 <15 12-120 900 2900 20.38
JB-60 1800 1600 3110 2640 650 300-1200 <15 12-120 1100 2300 23.88
JB-80 2000 1750 3210 2860 650 400-1800 <20 12-120 1400 1800 38.88
