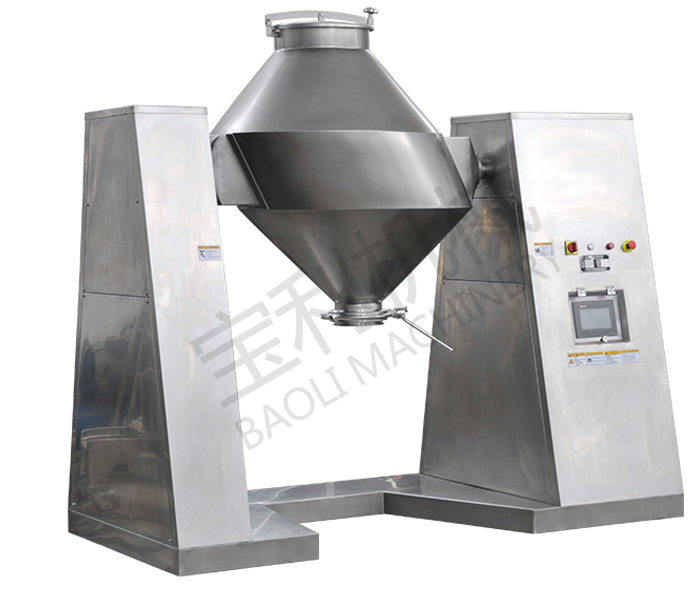

JB Series BW-type Mixing Machine

JB Series BW-type Mixing Machine

JB Series BW-type Mixing Machine

Detailed description

Main Usage:
The mixer is suitable for mixing dry powder and granules in pharmaceutical and other industries, especially having particular effect to free flowing powder and granules.



Specialty:
Unique structure of mixing cylinder,high mixing efficiency,free of dead corner,and eve mixing.

Technical parameter

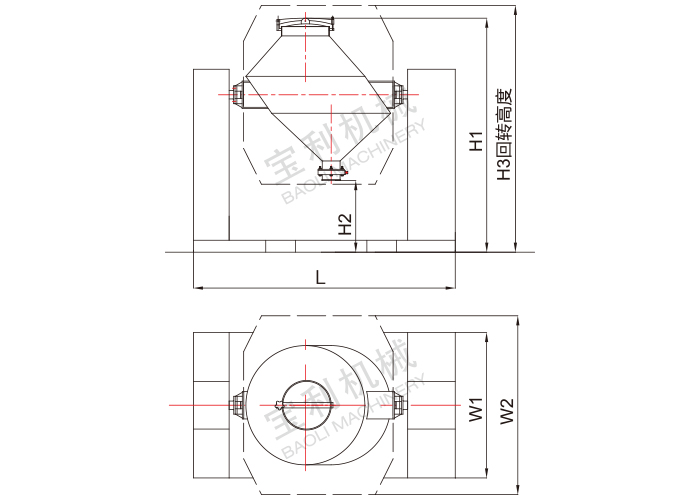

Model Main Structural Dimensions(mm) Volume Max loading Speed Machine weight Total power
L W1 W2 H1 H2 H3 DN L KG Rpm/min KG KW
JB-180 1700 800 1100 1650 650 1750 150 180 90 3-12 300 1.5
JB-300 1750 900 1300 1750 650 1950 150 300 150 3-12 500 2.2
JB-500 2200 1220 1500 1950 650 2150 200 500 250 3-12 800 3
JB-1000 2800 1650 1700 2200 650 2350 200 1000 500 3-12 1200 4
JB-1500 2960 1650 2000 2480 650 2540 250 1500 750 3-12 1600 5.5
JB-2000 3400 1900 2100 2550 650 2750 250 2000 1000 3-12 2000 7.5
JB-2500 3400 1900 2350 2950 650 3000 250 2500 1250 3-12 2400 11
JB-3000 3700 2200 2450 3000 650 3100 250 3000 1500 3-12 2900 15
JB-4000 4400 2200 2850 3250 650 3500 250 4000 2000 2-8 4100 18.5
