JB Series Hammer Mill (Conjoined-type)

JB Series Hammer Mill

JB Series Hammer Mill

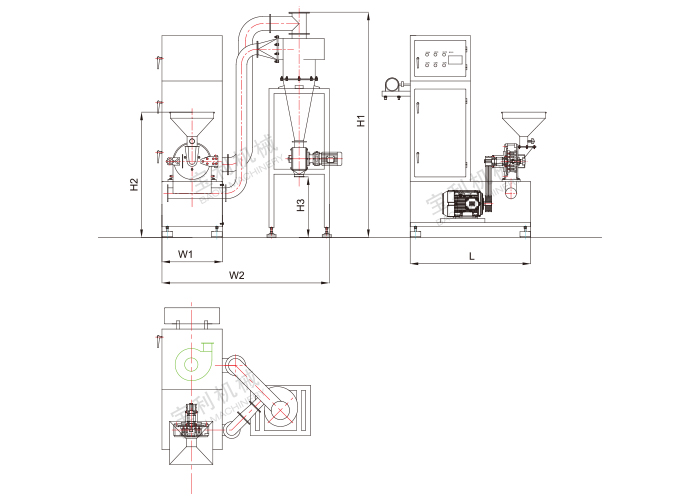

Model Main Structural Dimensions(mm) Capacity Input Particle Size Output Particle Size Speed Machine weight Total power
L W1 W2 H1 H2 H3 Kg/H mm mm rpm Kg KW
JB-250 1200 600 1600 2320 1250 650 20-100 <10 20-120 400 4600 6.25
JB-350 1250 600 1700 2540 1460 650 50-300 <10 20-120 600 3800 10.45
JB-300 1600 700 1850 2800 1600 650 100-400 <10 20-120 850 3400 14.75
Detailed description

Main Usage:
The machine unit is suitable for such fields as pharmaceutical, food, chemical, etc.It especially suitable for crushing fibrous and lipidic material.

Specialty:
This machine is made up of crusher,cyclone separator,pulse dust-collecting box etc. Material come into the chamber through the hopper, and crushed by high speed rotatiing hammers,crushed size can be adjusted by changing the screen, and the screen is insertion type. The crushed material flows into the cyclone separator by the induced fan and rotating centrifugal force, then being discharged through gate blower,dust come into the pulse dust-collecting box, filtrated and recycled by the filter cylinder. Designed by the standard of GMP, the whole machine is made of stainless steel, and there is no dust during the process of production.

Technical parameter
Category: Cursh Series
