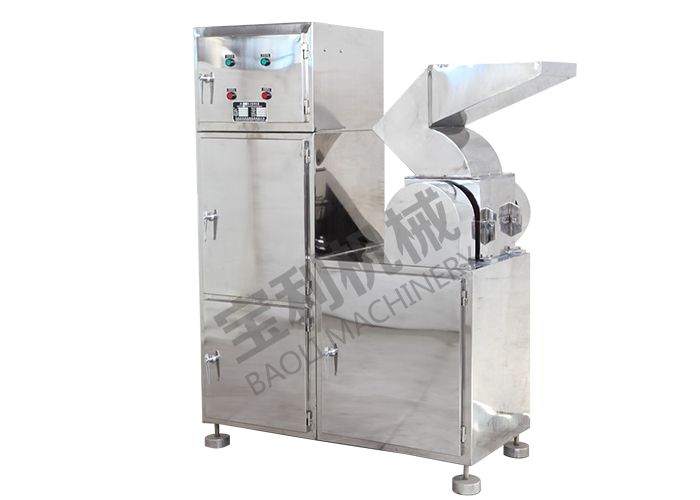

JB series dust collecting coarse crusher

Need Help?

Speak with a human to filling out a form? call corporate office and we will connect you with a team member who can help.

+86-13812119520

Detailed description

Main Usage:
JB series horizontal coarse crusher is a new type horizontal coarse crushing mechanical equipment developed and elaborately made by our factory, which is widely used in industries of chemical, pharmaceutical, electronics, foodstuff, rubber, plastics, etc. It is used as specialized equipment for coarse crushing of materials in preparatory process, and crush hard and tough materials like plastics, rubber, etc. Especilally, it is not limited by viscosity, hardness, softness and fiber shape of material and has good effectt to all materials.

Specialty:
The machine has horizontal crushing structure and the whole machine is made of stainless steel. It has such features as compact structure, convenient operation, stable running, wearability, easy to clean, low noise, good efficiency, etc. so it is the most ideal new production in the current crusher market.

Main Usage:
JB series horizontal coarse crusher is a new type horizontal coarse crushing mechanical equipment developed and elaborately made by our factory, which is widely used in industries of chemical, pharmaceutical, electronics, foodstuff, rubber, plastics, etc. It is used as specialized equipment for coarse crushing of materials in preparatory process, and crush hard and tough materials like plastics, rubber, etc. Especilally, it is not limited by viscosity, hardness, softness and fiber shape of material and has good effectt to all materials.



Specialty:
The machine has horizontal crushing structure and the whole machine is made of stainless steel. It has such features as compact structure, convenient operation, stable running, wearability, easy to clean, low noise, good efficiency, etc. so it is the most ideal new production in the current crusher market.

Technical parameter

Model Main Structural Dimensions(mm) Capacity Input Particle Size Output Particle Size Speed Machine weight Total power
L W H1 H2 Kg/H mm mm rpm Kg KW
JB-200 1300 700 1600 1750 50-200 ≤100 0.5-20 960 320 4.1
JB-300 1300 900 1600 1750 80-300 ≤100 0.5-20 960 400 5.1
JB-400 1400 1200 1600 1750 100-500 ≤100 0.5-20 960 500 6.6
JB-500 1400 1200 1600 1850 120-700 ≤100 0.5-20 960 700 8.6
JB-600 1500 1300 1600 1850 150-1000 ≤100 0.5-20 960 900 12.1
